產品名稱：
英管外螺紋60°/英管外螺紋O型圈 90°彎接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

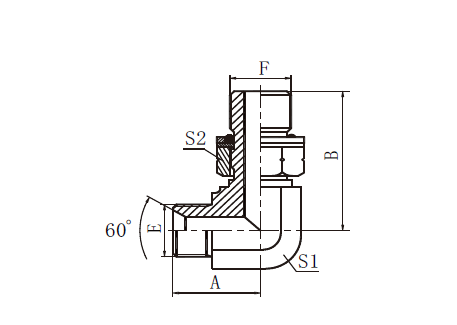

| 訂貨號 | 螺 紋 | 尺 寸 | ||||||
| E | F | A | B | S1 | S2 | |||
| A35-04/9 | G1/4"X19 | G1/4"X19 | 25 | 31.5 | 14 | 19 | ||
| A35-04-06/9 | G1/4"X19 | G3/8"X19 | 26.5 | 36.8 | 16 | 22 | ||
| A35-06/9 | G3/8"X19 | G3/8"X19 | 28 | 36.8 | 16 | 22 | ||
| A35-06-08/9 | G3/8"X19 | G1/2"X14 | 31 | 43.2 | 22 | 27 | ||
| A35-08/9 | G1/2"X14 | G1/2"X14 | 34.5 | 43.2 | 22 | 27 | ||
| A35-12-16/9 | G3/4"X14 | G1"X11 | 45 | 53 | 33 | 41 | ||
| A35-20/9 | G1.1/4"X11 | G1.1/4"X11 | 51.5 | 58 | 41 | 50 | ||
| A35-24/9 | G1.1/2"X11 | G1.1/2"X11 | 58.5 | 63 | 48 | 55 | ||
